Since 1994 · Made in Pune · India and export

Cable trays, industrial instruments and green building consultancy.

Founded in Pune in 1994, we make cable trays and instruments for projects across India and export markets, and offer energy audits and green building certification support.

4.9 Google rating · read our reviews

UL certified
IEC 61537:2023
NEMA VE 1

Perforated trays tested at an NABL-accredited laboratory
Export to the USA, Canada, Europe, Russia, South America, the GCC, Africa and Asia

Our prestigious clients

What we do

Three pillars, built in Pune.

Cable trays from our own plant, instruments to your specification, and green building and energy consultancy.

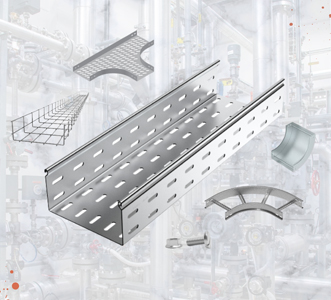

01 · CABLE TRAYS

Cable Trays

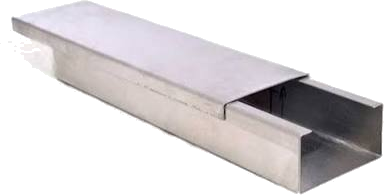

UL certified cable trays: perforated, ladder, wire mesh and raceway in pre-galvanised, HDG, powder-coated, aluminium and stainless steel, up to 8,000 metres a day.

UL certified
HDG
SS 316L
IEC 61537:2023
NEMA VE 1

TypesPerforated, ladder, wire mesh, raceway
Standard length2,500 mm
TestingPerforated trays tested at an NABL-accredited laboratory
CertificationUL certified, IEC 61537:2023, NEMA VE 1
MarketsIndia, and export to the USA, Canada, Europe, Russia, South America, the GCC, Africa and Asia

Explore cable trays

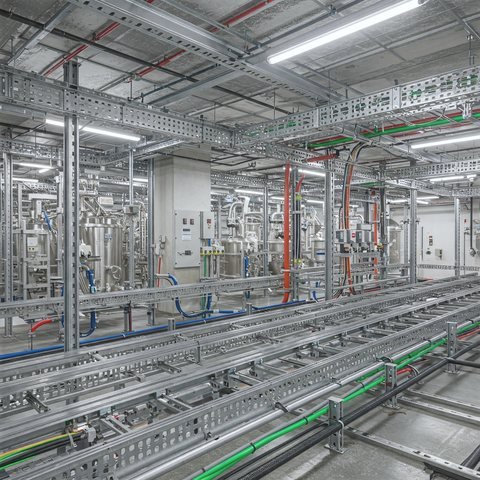

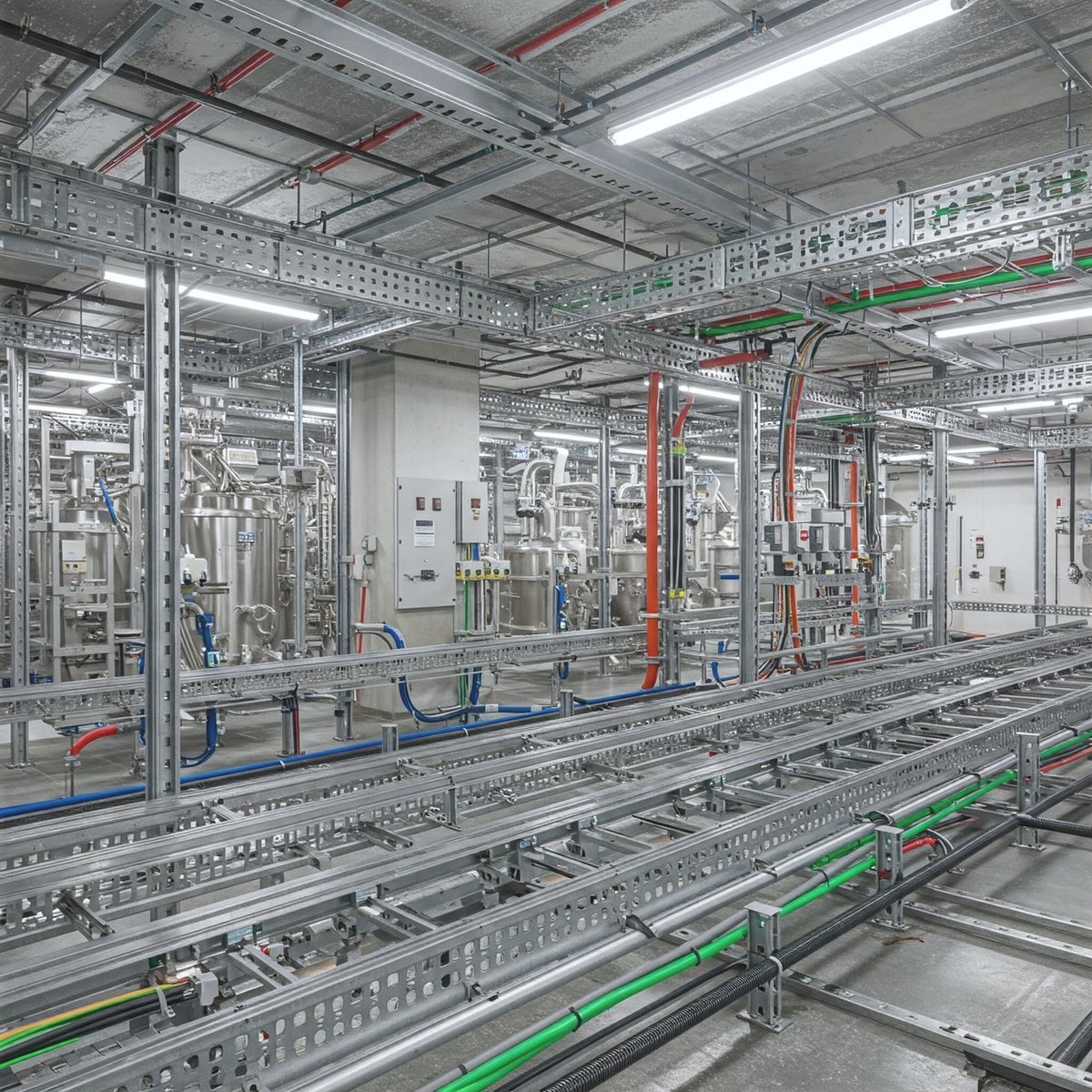

Generated scene of perforated cable trays in a process plant

02 · INSTRUMENTS

Instruments

Pressure, temperature, level, flow and BTU, air-quality and specialty instruments: 55 instrument types, each with a spec table and a consultant clause.

CategoriesPressure, temperature, level, flow, environmental, gas detection and IAQ, specialty
For specifiersSpec table and consultant clause on every page

Explore instruments

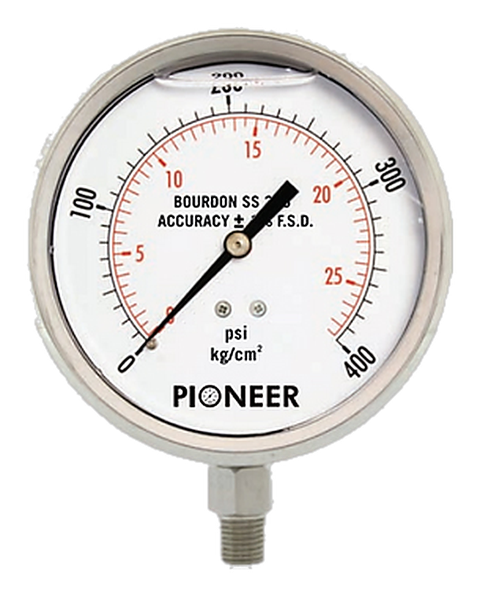

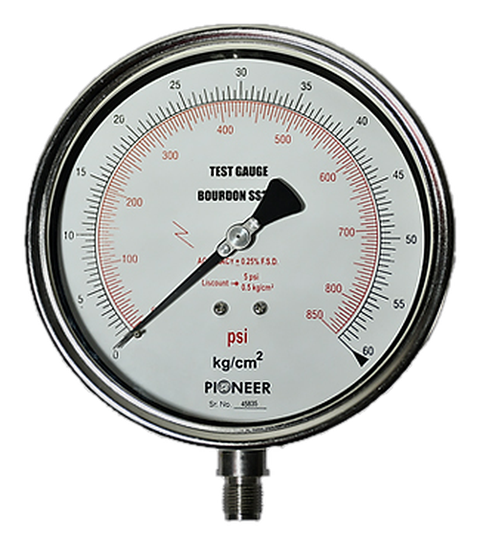

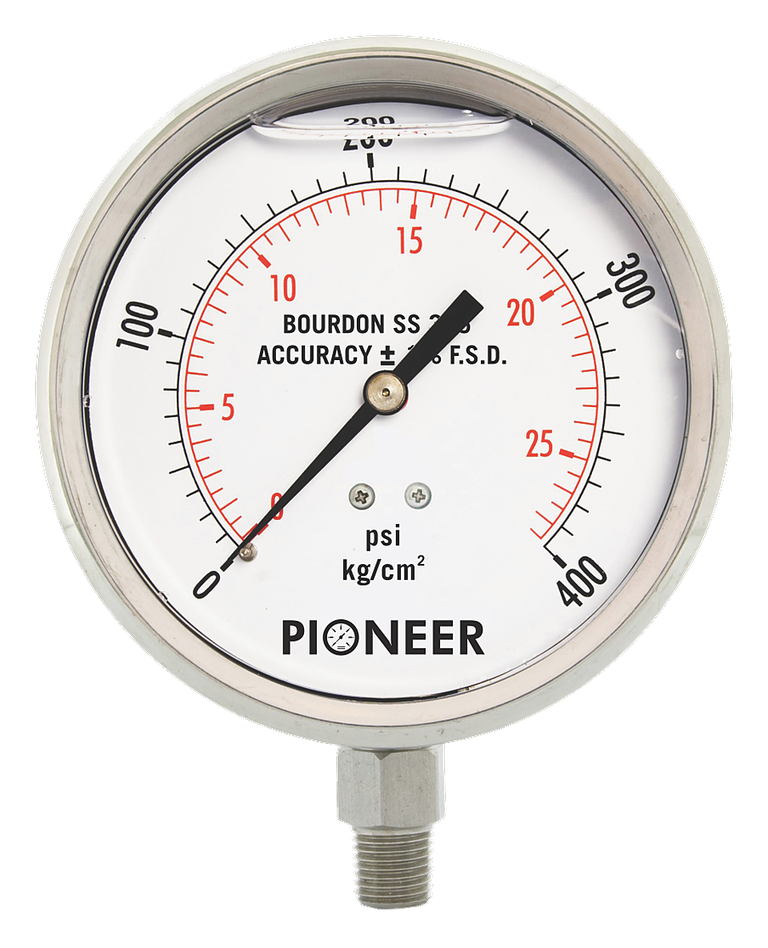

Pioneer stainless steel Bourdon tube pressure gauge with psi and kg/cm² dial

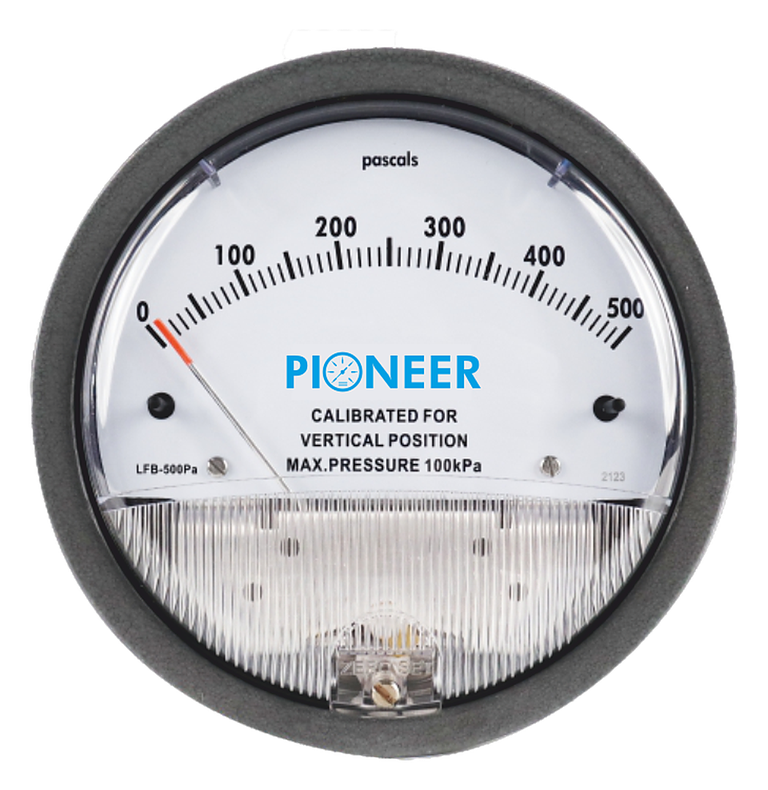

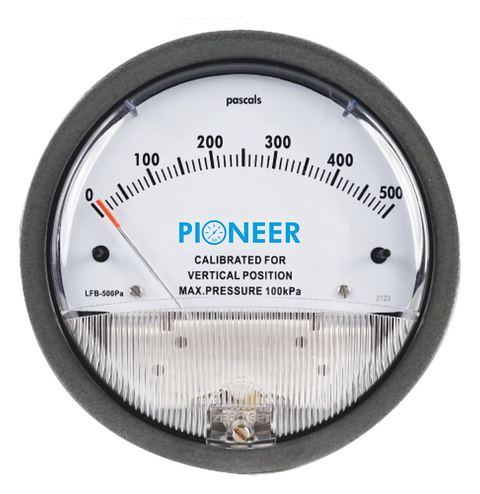

Pioneer low differential pressure gauge (Magnehelic type) with 0-500 Pa dial

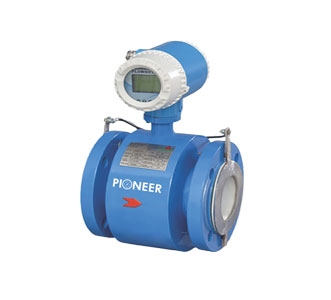

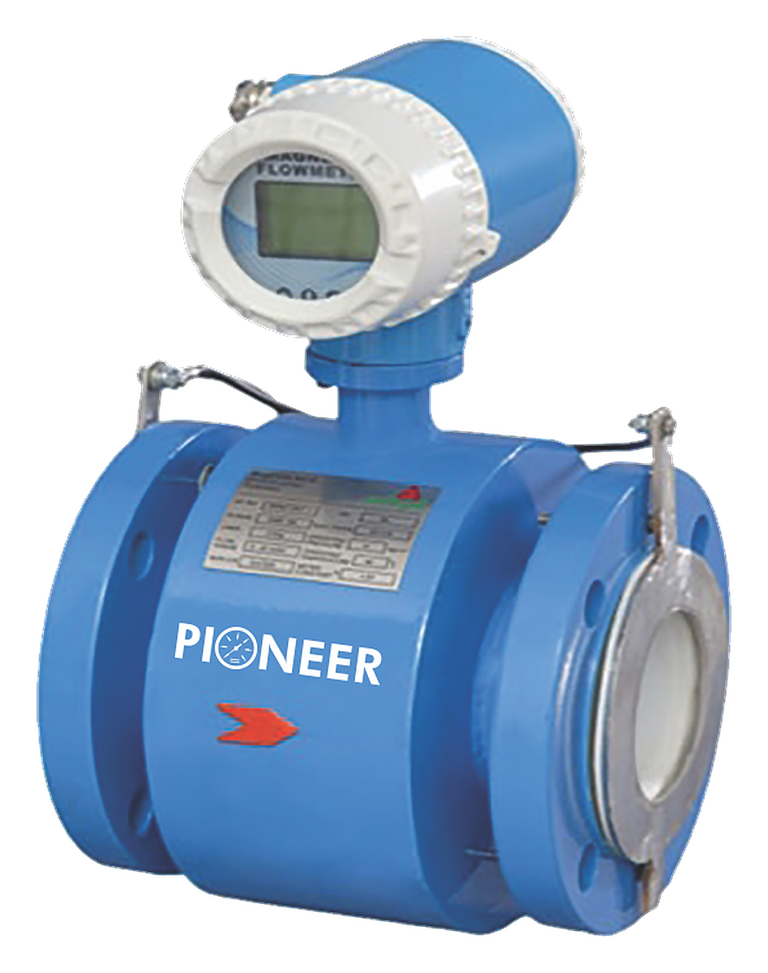

Pioneer flanged electromagnetic flowmeter with integral display transmitter

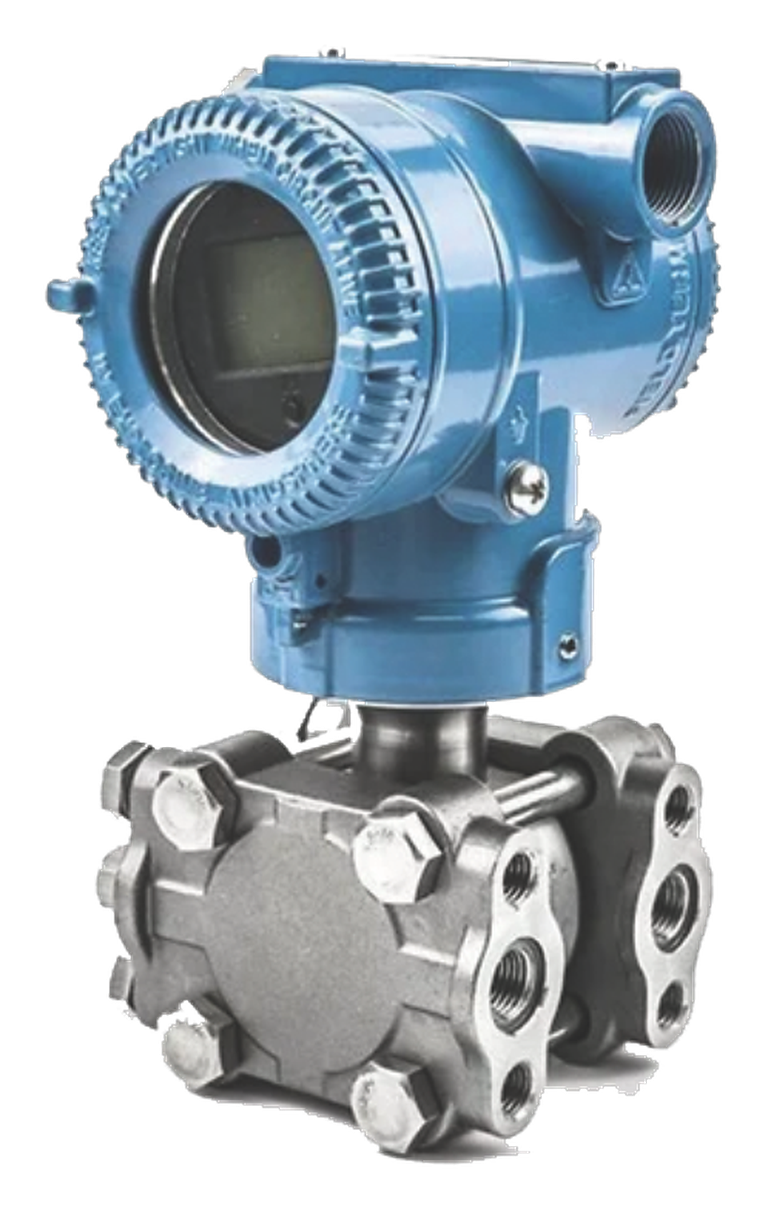

Pioneer differential pressure transmitter with stainless steel process flanges

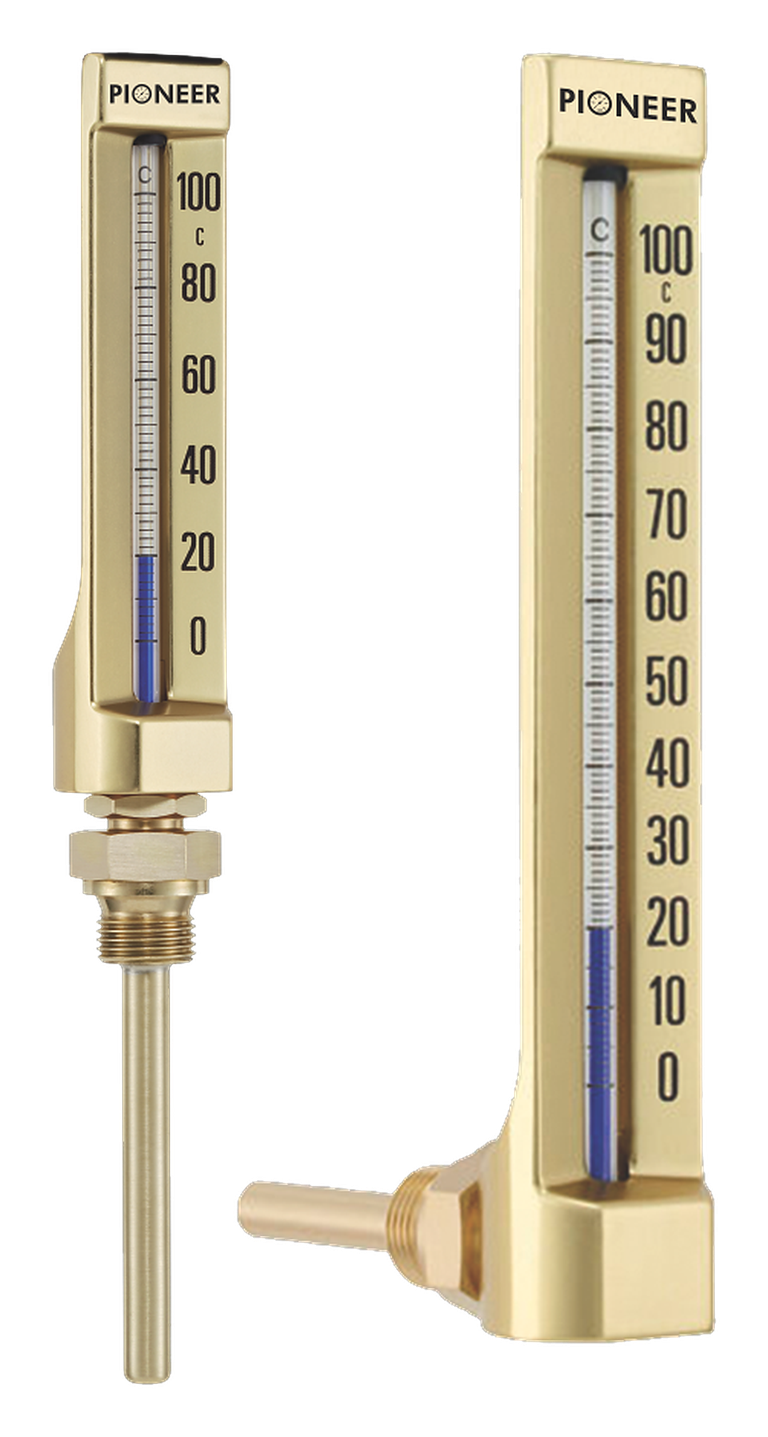

Pioneer industrial glass thermometers, straight and angled stem versions

03 · GREEN BUILDING & ENERGY

Green Building & Energy

Green building certification support, energy audits and sustainability advice from IGBC AP and GEM CP credentialed consultants.

IGBC
GRIHA
GEM
LEED

CertificationIGBC, GRIHA, GEM and LEED rated projects
EnergyAudits of buildings and plants
CredentialsIGBC AP, GEM CP

Explore consultancy

Pioneer Cable Trays

The backbone of every electrical route.

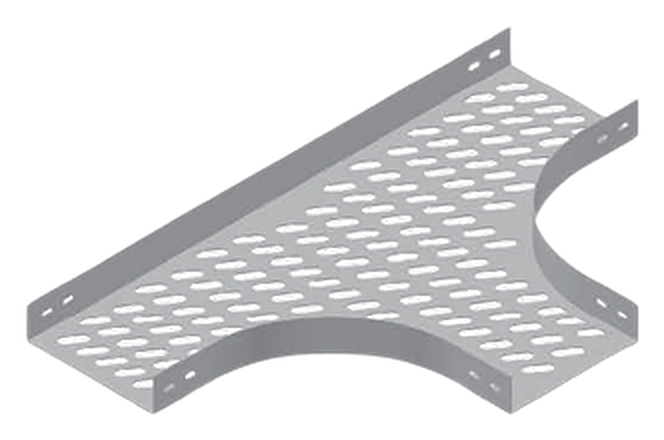

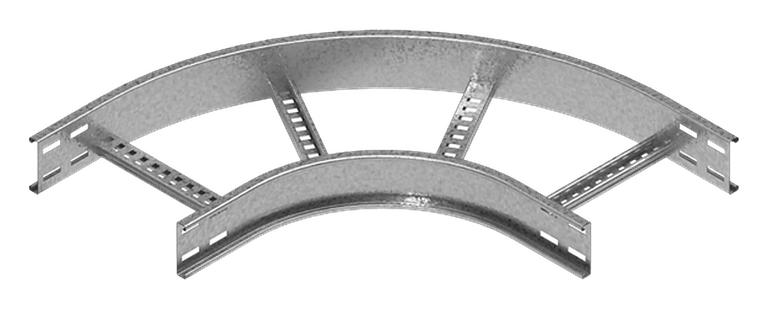

Perforated, ladder, wire mesh and raceway trays with bends, tees and covers, made at our Pirangut plant in standard 2,500 mm lengths, for Indian and export projects.

Up to 8,000m/day

Get a cable tray quote pioneercabletrays.com

Materials and finishes

Pre-galvanised
Hot-dip galvanised
Powder-coated
Aluminium
SS 304L
SS 316L
FRP (supplied)

Standards

BS EN 61537 for UK-spec projects

India and export

Made in Pune. Shipped across India and overseas.

One plant in Pirangut supplies projects across India and export orders for the USA and Canada, Europe, Russia, Brazil, Argentina and South America, the GCC and Middle East, Africa, South-East Asia and Japan, with the standards and documents each market asks for.

India

Across India

Cable trays and instruments for consultants, contractors and plants across India, quoted to your BOQ and the specification you work to, from IS-based finishes to IEC 61537:2023.

Cable tray pages by region

Quote for an Indian project

Export

Export orders for cable trays and instruments to the USA and Canada, Europe, Russia, Brazil, Argentina and South America, the GCC and Middle East, Africa, South-East Asia and Japan, quoted FOB Nhava Sheva with full export documentation. India-made, non-China origin.

UL certified and NEMA VE 1 compliant trays for USA and Canada projects
IEC 61537:2023 for European and international specifications
BS EN 61537 for UK-spec projects
Perforated trays tested at an NABL-accredited laboratory

Quote for an export project

Industrial instruments

Instruments that read true.

All 55 instruments

instrument types, each with a spec table and a consultant clause.

Browse all instruments

More from the range

Pioneer instruments on our standard studio background. Tap any one for its spec table and consultant clause.

Green Building & Energy

Greener buildings, lower energy bills.

Consultancy from IGBC AP and GEM CP credentialed professionals, for new buildings and running plants.

Green building certification

Support for IGBC, GRIHA, GEM and LEED rated projects, from registration to documentation for submission.

Learn more

Energy audits

Audits of buildings and plants that find where energy is lost and what it costs.

Learn more

Sustainability advisory

Practical advice on materials, water and energy for owners and design teams.

Learn more

Rating systems we work with

Indian Green Building Council
Green Rating for Integrated Habitat Assessment
ASSOCHAM GEM rating
USGBC rating system

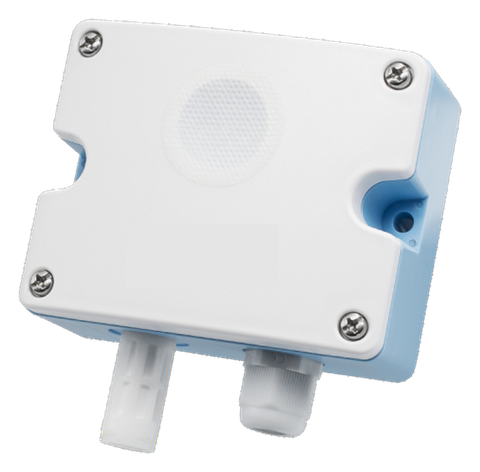

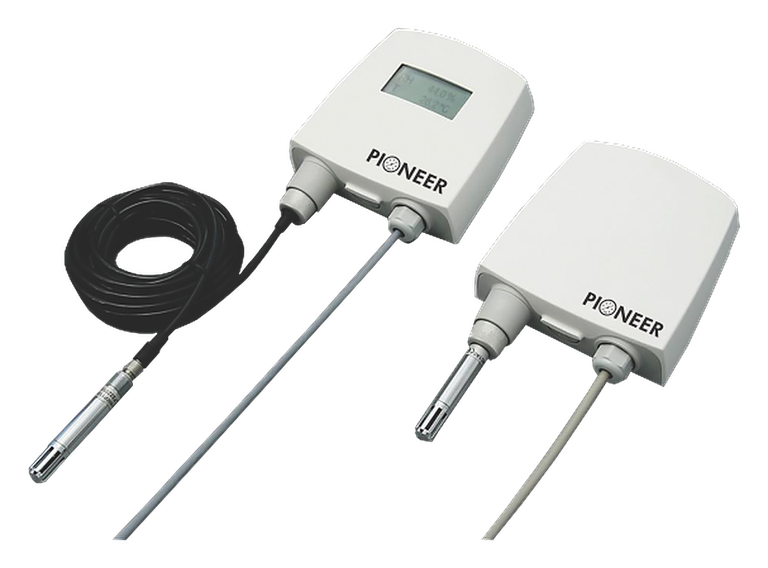

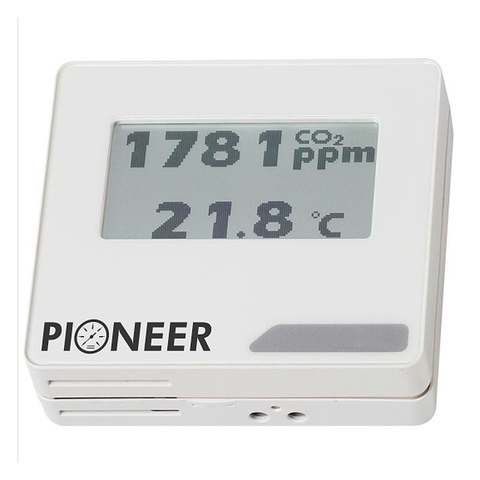

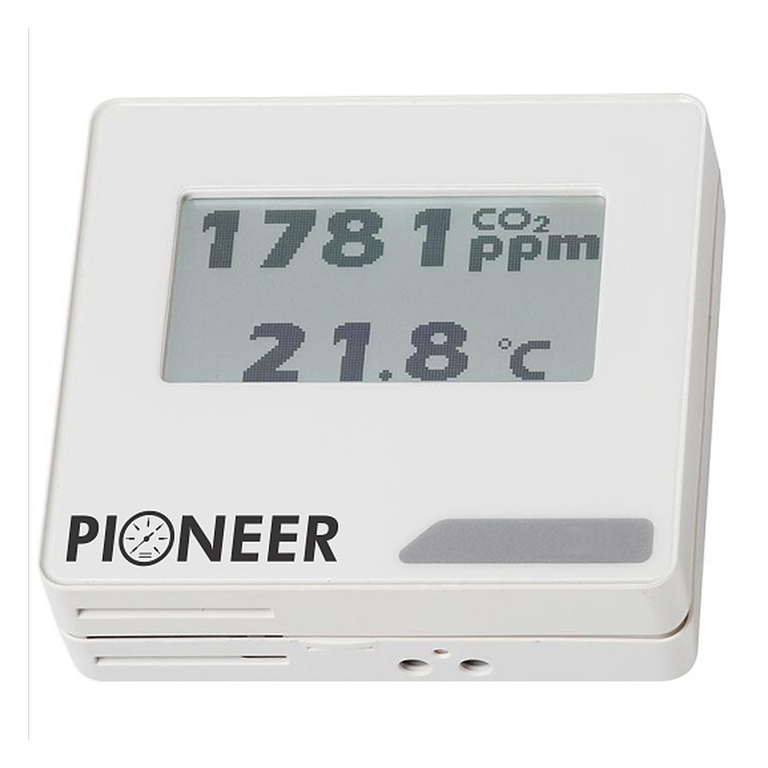

Instruments for green buildings:CO₂ sensors IAQ monitors BTU meters Duct humidity and temperature sensors

Talk to our green building team

1994

Founded in Pune

30+

Years of manufacturing

Up to8,000m/day

Cable tray capacity

Instrument types

4.9

Google rating

For consultants

Spec clauses, ready to paste.

A consultant specification clause on every instrument page.
Every clause on one page, with a plain-text download for your specification.
Print-ready spec sheets: any product page saves as a clean PDF.

Open spec clauses Download .txt

magnehelic-gauge · spec clause

1. Low differential pressure gauges shall be diaphragm-actuated, magnetic-helix type, with no mechanical linkage between diaphragm and pointer, for air and non-combustible gases.
2. Dial shall be 100 mm (4"), with die-cast aluminium case and bezel, acrylic cover and front zero adjustment.
3. Range shall be as scheduled: 0–250 Pa for pre-filters (0–500 / 0–750 Pa for fine and HEPA filters; 0–60 Pa or 60–0–60 Pa for room pressure).
4. Accuracy shall be ±3% of full scale; pressure limits −70 kPa to 100 kPa; operating temperature −6.7 °C to 60 °C.
5. Gauges shall have duplicated 1/8" NPT(F) high and low pressure taps (side and back), and shall be supplied with plugs, tubing adapters and flush-mounting adapters.
6. Gauges shall be mounted with the diaphragm vertical, connected with flexible tubing to static pressure tappings on each side of the filter or room boundary.
7. Each gauge shall be supplied with a manufacturer's test certificate.
Make: Pioneer Industrial Instruments, Pune, or approved equivalent.

Made in Pirangut, Pune

Our cable trays are made at our own plant in Pirangut, Pune: perforated, ladder, wire mesh and raceway types in standard 2,500 mm lengths, with bends, tees and covers made to the project drawing, at up to 8,000 metres a day.

Founded1994, by Deepak Wani
CapacityUp to 8,000 metres of cable tray a day
TestingPerforated trays tested at an NABL-accredited laboratory (Chakan Testing and Research Lab, NABL TC-8638). Test reports (PDF)
AddressPlot No. 5, Gat No. 107/B, Sonai Industrial Estate, Paud Road, Pirangut, Pune – 412115, Maharashtra, India

Pirangut plantSonai Industrial Estate, Paud Road

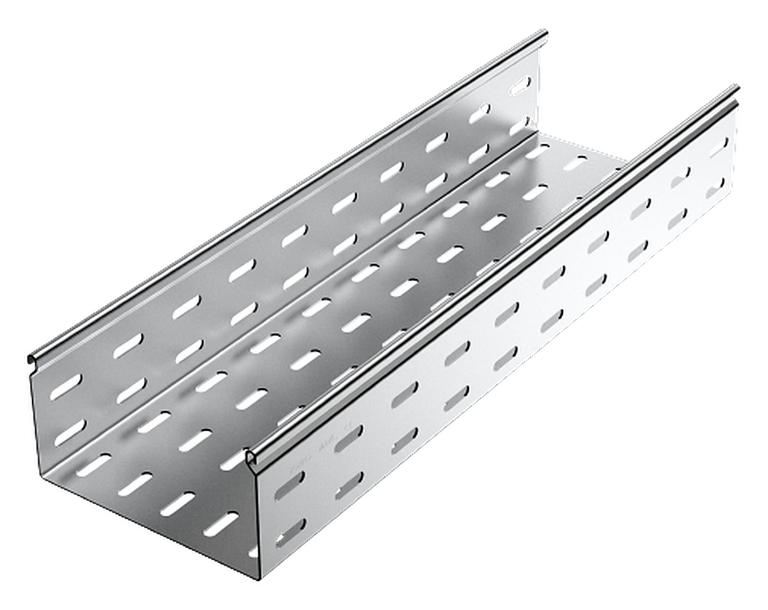

Pioneer perforated cable tray, straight section

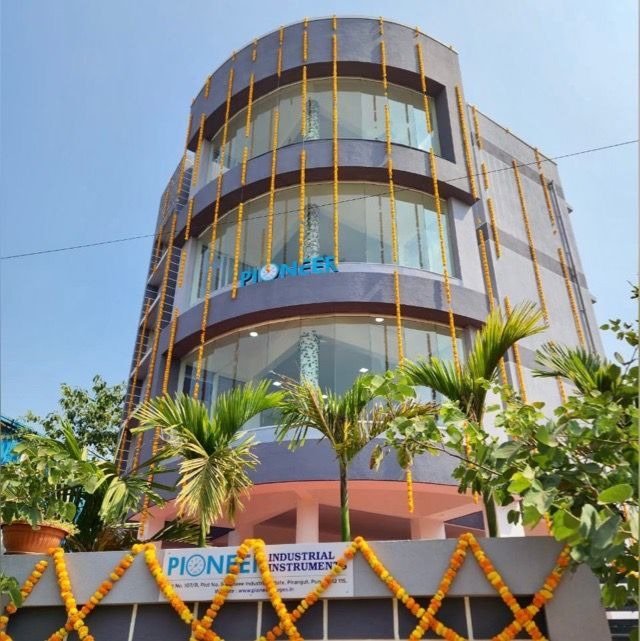

Pioneer Industrial Instruments building at Pirangut, Pune

Industries

Where our trays and instruments work.

Engineering guides

Selection notes from our engineers.

All guides

Magnehelic-type vs digital DP gauges for cleanrooms

For any cleanroom pressure difference your risk assessment calls critical, use a digital differential pressure transmitter or room monitor wired to a…

9 min read 02

BTU meters for chilled water: selection and installation

A BTU meter (thermal energy meter) combines a flow sensor, a matched pair of temperature sensors and a calculator that integrates flow × temperature…

9 min read 03

Electromagnetic vs ultrasonic flow meter: which to use

Choose an electromagnetic flowmeter when the liquid is conductive, the pipe can be cut and will always run full, and you want the best installed…

9 min read

FAQ

Questions buyers ask us.

Anything else? Call or WhatsApp +91 93700 39974.

What does Pioneer Industrial Instruments do?

Pioneer has three businesses. It manufactures cable trays at its plant in Pirangut, Pune, sold as Pioneer Cable Trays; it manufactures and supplies industrial instruments for pressure, temperature, level, flow and air quality; and it consults on green buildings and energy, including certification support and energy audits. The company was founded in 1994 by Deepak Wani.

Which cable trays does Pioneer make?

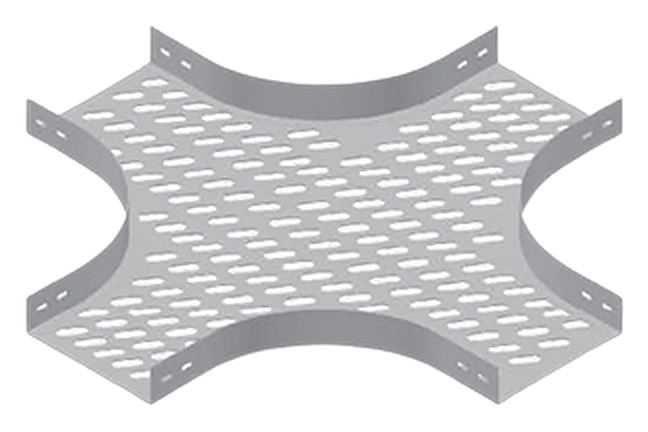

Perforated, ladder, wire mesh and raceway (trunking) cable trays, with bends, tees, crosses, reducers, covers and couplers. Finishes are pre-galvanised, hot-dip galvanised, powder-coated, aluminium, SS 304L and SS 316L, and FRP cable trays are also supplied. The standard length is 2,500 mm and the plant can make up to 8,000 metres a day.

What standards do Pioneer cable trays meet?

Pioneer cable trays are UL certified and compliant with IEC 61537:2023 and NEMA VE 1. Perforated trays have been tested at an NABL-accredited laboratory, Chakan Testing and Research Lab, Pune (NABL TC-8638), and the test reports are published on pioneercabletrays.com.

Does Pioneer export cable trays?

Yes. Pioneer exports cable trays and instruments with full export documentation, to projects in the USA and Canada, Europe, Russia, Brazil, Argentina and South America, the GCC and Middle East, Africa, South-East Asia and Japan. Export orders are quoted FOB Nhava Sheva. Trays are offered to NEMA VE 1, IEC 61537:2023 or BS EN 61537, so one range can be quoted against North American, IEC-based and UK specifications. Send the destination port and the specification with your enquiry.

Which instruments does Pioneer supply?

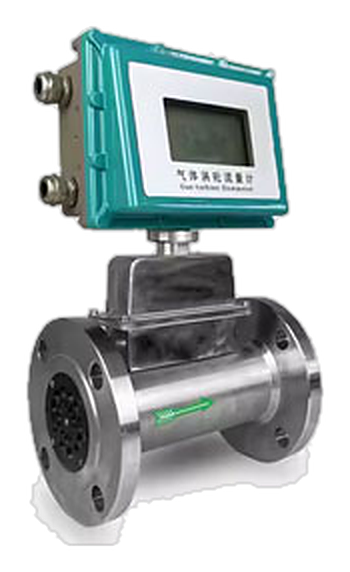

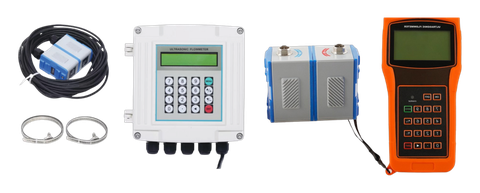

Pressure, temperature, level and flow instruments (including electromagnetic, ultrasonic and BTU meters), environmental monitoring, gas detection and indoor air quality, and specialty instruments: 55 instrument types in seven categories. See all industrial instruments.

Do you provide specification clauses for consultants?

Yes. Every instrument page has a specification table and a tender-ready clause that ends with "or approved equivalent". All clauses are also on the spec clauses page, with a plain-text download.

What green building and energy services does Pioneer offer?

Consultancy for green building certification under IGBC, GRIHA, GEM and LEED, energy audits, and sustainability advice, from IGBC AP and GEM CP credentialed consultants. See Green Building & Energy.

How do I get a quotation?

Send your BOQ, instrument schedule or drawings through the enquiry form, email info@pioneerinstrumentation.com, or call or WhatsApp +91 93700 39974. Quotations are typically sent within 48 hours.

Let's spec your next project.

Request a quote WhatsApp +91 93700 39974
