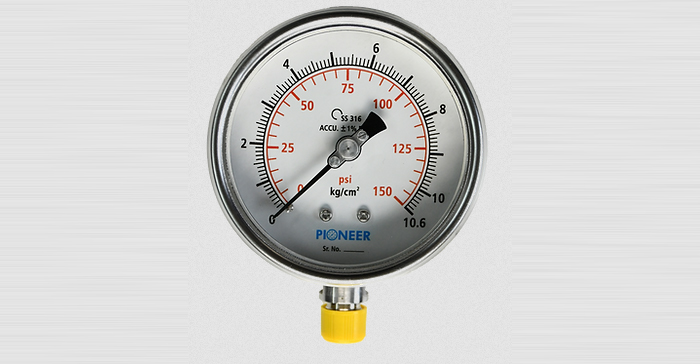

Bourdon type SS Pressure Gauges

Home Bourdon type SS Pressure Gauges
Bourdon type SS Pressure Gauges
Request A Quote

Special Features

  • Excellent stability & shock resistance
  • Dry and liquid filled version
  • Socket directly welded to case
  • Calibrated as per IS 3624
  • WITH CASE FILLING FOR APPLICATION WITH HIGH DYANAMIC & PRESSURE LOADS & VIBRATION

Application

  • Chemical & Petrochemical industries
  • Refrigerating plants, Conventional & nuclear power plants
  • Environments & gaseous or liquid media that will not obstruct the pressure system
  • Oil & Gas Industries
  • Food Processing

TECHNICAL SPECIFICATIONS

Standard Dial Size : 100 mm, 150 mm, 200 mm, 250 mm

Range 0 - 1, 0 - 1.6, 0 - 2.5, 0 - 4, 0 - 6, 0 - 10,
0 - 16, 0 - 25, 0 - 40, 0 - 60, 0 - 100,
0 - 160, 0 - 250, 0 - 400, 0 - 600 kg / cm²
& Vacuum Range 0 - 760 mm-Hg & Compound
Units kg / cm² / psi, bar, kPa
Dial Scale Single scale , dual scale
Accuracy ±1% FSD as per IS 3624
Over Range 130% F.S.
Protection IP 65 / IP 67
Mech. Shock 'G' Value 15 G, 6 msec
Storage Temperature -20 D.C. to 60 D.C.
Case Material SS 304. Weather Proof, Dust Proof
Dial Aluminum, Black Graduation on White Background
Windows Shutterproof Glass, Toughened glass
System SS 316 Bourdon with SS 316 Socket
Movement SS 304
Pointer Knife Edge Micrometer Adjustable
Connetion 3/8" BSP, 3/8" NPT, 1/2" BSP. 1/2" NPT
Mounting Direct Mounting Bottom Entry
Option Without, Glycerine Filled
