BTU Meters and Water Meters — Thermal Energy and Water Metering

A BTU meter measures the heating or cooling energy a chilled water or hot water circuit delivers, from flow rate and supply and return temperatures. Pioneer supplies ultrasonic BTU meters for pipes from 2" to 80" with clamp-on or insertion flow sensors and a PT100 pair, reading in kW, TR or MBTU with Modbus RTU, Modbus IP or BACnet IP. It also supplies mechanical and electromagnetic water meters for consumption metering.

Pipe size: 2" to 80"
Accuracy: ±2% of full scale
Display: 16 × 2 character LCD with backlight

Request a quote WhatsApp Spec clause

Quotation typically within 48 hoursSupply India and export

Overview

What it does and where it fits.

A BTU (thermal energy) meter has three parts: a flowmeter, a pair of temperature sensors on the supply and return pipes, and a calculator. The calculator multiplies flow by the temperature difference and the heat capacity of water. For water, power in kW is about 1.163 × flow in m³/h × ΔT in °C, and the meter totals this over time as kWh or MBTU.

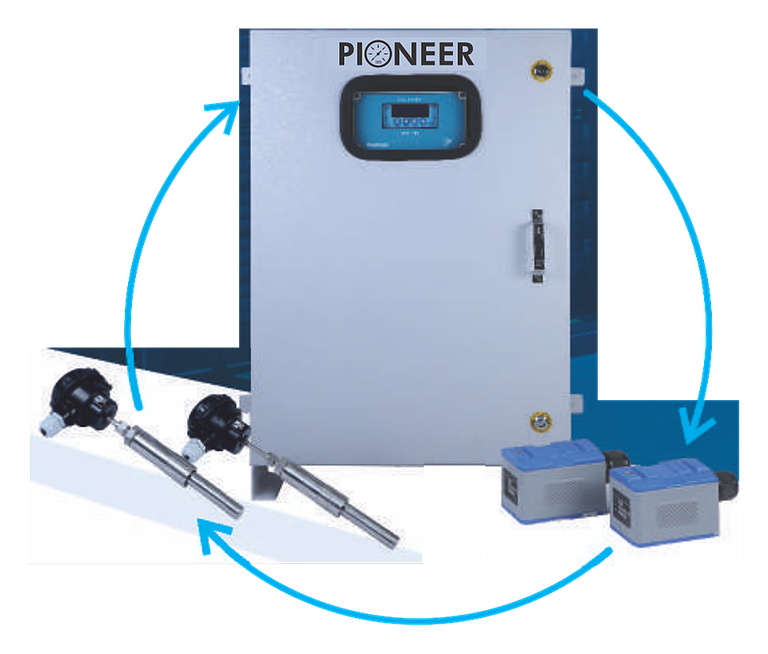

Pioneer's BTU meter uses an ultrasonic transit-time flowmeter, clamp-on for retrofits or insertion type for better signal, with PT100 RTDs on the inlet and outlet. The calculator sits in an IP67 wall-mounted enclosure and logs hourly readings for tenant billing, AHU-level energy accounting and chiller plant performance tracking.

For water consumption alone, Pioneer supplies helical vane mechanical water meters (15–300 mm) and electromagnetic flowmeters (DN 10–2000) with pulse or 4–20 mA output for BMS integration and sub-metering.

Types

Ultrasonic BTU meter, clamp-onFlow transducers strapped outside the pipe; install without cutting the pipe or draining the system.
Ultrasonic BTU meter, insertionFlow transducers inserted through isolating ball valves, for lined, scaled or large pipes.
Mechanical water meterHelical vane meter, 15–300 mm, analogue register, no power required.
Electromagnetic water meterFull-bore meter, DN 10–2000, for raw, treated and effluent water with 4–20 mA, pulse or Modbus output.
Electrical energy sub-metersSingle-phase and three-phase meters for panel or DIN-rail mounting, supplied on request.

Features

Reads cooling or heating energy in kW, TR or MBTU
Clamp-on installation without cutting the pipe or stopping water
Matched PT100 sensors for inlet and outlet temperature
Isolated 4–20 mA output proportional to power
Modbus RTU, Modbus IP or BACnet IP for BMS integration
4900 hourly readings stored as standard; 9800 on request
Totaliser retained on power failure
Compact IP67 wall-mounted enclosure

Applications

Chilled water energy metering at AHUs, FCU risers and tenant floors
Tenant billing in commercial buildings, malls and IT parks
District cooling and district heating sub-stations
Chiller plant performance and kW/TR monitoring
Hot water and process heating energy accounting
Water sub-metering and leak detection in buildings and plants
Green building and energy audit measurement and verification

Specifications

Spec table.

Standard ranges and materials. Tell us your medium, range and connection and we will match the model.

Ask for a data sheet

Parameter	Value
Pipe size	2" to 80"
Flow sensor	Ultrasonic transit-time, clamp-on or insertion
Inputs	4–20 mA DC from ultrasonic flowmeter; PT100 RTD inlet temperature; PT100 RTD outlet temperature
Output	4–20 mA DC, 600 Ω maximum load, isolated, proportional to power
Display	16 × 2 character LCD with backlight
Engineering units	kW, TR, MBTU
Power unit	MBTU/h or kW, programmable
Energy unit	MBTU or kWh
Accuracy	±2% of full scale
Temperature drift	0.015% of full scale per °C maximum
Totaliser backup	Total retained on power failure
Data storage	4900 readings (hourly logging) standard; 9800 readings on request
Protocol	Modbus RTU, Modbus IP, BACnet IP
Serial interface	RS 485 (default) or RS 232, for Modbus RTU
Operating temperature	0 to 50 °C
Relative humidity	90% RH maximum, non-condensing
Enclosure	Wall mounting, IP67
Power supply	85 to 265 V AC, 50 Hz, universal

Water meters

Parameter	Mechanical (helical vane)	Electromagnetic
Line size	15–300 mm	DN 10–DN 2000
Display	Analogue register	2-line LCD/LED, rate and totaliser
Accuracy	—	±0.5% of measured value
Pressure	10 bar operating, 16 bar maximum	10, 16, 25, 40 kg/cm²
Temperature	Up to 50 °C	Up to 70 °C with rubber liner
Body	Stainless steel casting	SS 304 tube, carbon steel housing
Output	—	4–20 mA standard; pulse, relay, Modbus optional
Power	None	24 V DC or 80–300 V AC

The ±2% of full scale accuracy is for the energy calculator; overall system accuracy also depends on the flow measurement and the temperature difference. Larger data storage and other protocols on request.

For consultants

Consultant spec clause.

Paste it into your technical specification or BOQ, then adjust ranges and quantities to your schedule.

All spec clauses Download .txt

energy-and-water-meters · spec clause

1. BTU meter shall measure thermal energy in chilled water (hot water) circuits from flow and supply and return temperatures, comprising an ultrasonic transit-time flowmeter, a matched pair of PT100 RTDs and an energy calculator.
2. Flow sensors shall be clamp-on (insertion) type suitable for the specified pipe size within 2" to 80", installed without cutting the pipe or draining the system.
3. Energy calculator shall accept 4–20 mA flow input and two PT100 inputs, with energy calculator accuracy of ±2% of full scale and temperature drift not exceeding 0.015% of full scale per °C.
4. Calculator shall display instantaneous power and totalised energy in kW and kWh (TR / MBTU as specified) on a backlit LCD, and retain the total on power failure.
5. Calculator shall provide an isolated 4–20 mA output proportional to power and Modbus RTU over RS 485 (Modbus IP / BACnet IP as specified) for BMS integration.
6. Calculator shall log at least 4900 hourly readings and be housed in an IP67 wall-mounted enclosure, powered from 85–265 V AC, 50 Hz.
7. Temperature sensors shall be installed in thermowells on the supply and return lines, and flow sensors on a straight, full section of pipe as recommended by the manufacturer.
8. Each BTU meter shall be supplied with a manufacturer's test certificate, wiring diagram and Modbus/BACnet point list.
Make: Pioneer Industrial Instruments, Pune, or approved equivalent.

FAQ

Questions about BTU and Water Meters.

Anything else? Call or WhatsApp +91 93700 39974.

How does a BTU meter calculate cooling energy?

It multiplies water flow by the supply-to-return temperature difference and the heat capacity of water. For water, cooling power in kW is about 1.163 × flow (m³/h) × ΔT (°C), and 1 TR is 3.517 kW. For example, 100 m³/h at a ΔT of 5 °C is about 581 kW, or 165 TR. The calculator totals this over time as kWh, TR-h or MBTU.

What limits the accuracy of a chilled water BTU meter?

At small temperature differences, temperature measurement dominates. With a chilled water ΔT of 5 °C, a 0.1 °C error between the two sensors gives about 2% energy error. Use a matched PT100 pair installed in similar thermowells, mount the flow sensor on a straight, full pipe, and enter the pipe data accurately. The calculator itself is ±2% of full scale.

Clamp-on or insertion flow sensors for a BTU meter?

Clamp-on sensors are quickest to install on a live system and suit clean steel or copper pipes. Insertion sensors, fitted through isolating ball valves, give a stronger, steadier signal on old, scaled or lined pipes and large mains, and need a welding point and a wall under 20 mm thick. Both can be installed without draining the system.

Can the BTU meter connect to a BMS?

Yes. The calculator has Modbus RTU over RS 485 as standard, with Modbus IP and BACnet IP options, and an isolated 4–20 mA output proportional to power. The BMS can read instantaneous power, totalised energy and temperatures for tenant billing and plant dashboards. The internal logger also stores 4900 hourly readings in case the BMS link fails.

Which water meter suits building sub-metering?

For domestic and flushing water lines from 15 to 300 mm, a mechanical helical vane meter is simple and needs no power. Where you need remote reading, use an electromagnetic meter with pulse, 4–20 mA or Modbus output. A magmeter has no moving parts and handles dirty water, raw water and effluent. Size both on actual flow, not just pipe size.
