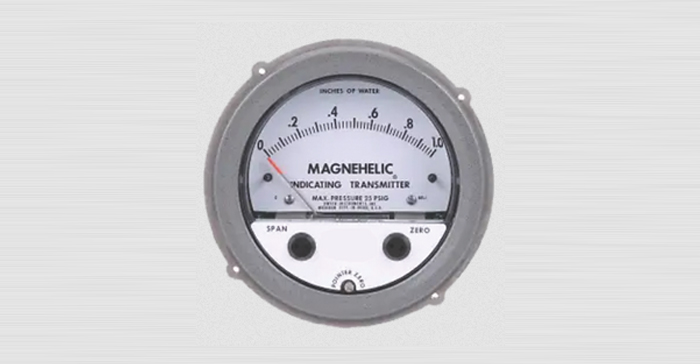

Magnehelic Gauge (Low Differential Pressure Gauges)
Accurate low differential pressure measurement is essential for :
- HVAC System Performance : Ensuring proper airflow, filter efficiency, and energy savings.
- Cleanroom Integrity : Maintaining pressure differentials between clean zones to prevent contamination.
- Fume Hood Safety : Verifying adequate exhaust airflow to protect personnel.
- Airflow Measurement : Used with pitot tubes to determine air velocity.
- Filter Monitoring: Detecting filter blockage and optimizing replacement schedules.
Key Advantages of Magnehelic Gauges (Low Differential Pressure Gauges)
- High Sensitivity : Accurately measure very small pressure differences.
- Frictionless Movement : The Magnehelic gauge's unique design provides smooth, consistent readings.
- Durable and Reliable : Built to withstand demanding environments.
- Easy to Read : Large, clear dial for quick and accurate pressure indication.
- Versatile Mounting : Available in various mounting options.
Why Choose Pioneer ?
Expert Application Knowledge, Fast and Reliable Shipping, Competitive Pricing
Specifications
- Zero adjustment in front
- For dry, clean, non corrosive gases
- Monitoring filters and over pressure in clean rooms
- Accuracy 3% of FS
| Specification | Details |
|---|---|
| Range | 0-60Pa, 0-125Pa, 0-250Pa, 0-500Pa, 0-750Pa, 0-60-60Pa; 0-1KPa, 0-1.5KPa, 0-2KPa, 0-3KPa, 0-4KPa, 0-5KPa, 0-8KPa |
| Accuracy | ±4% |
| Service | Air and non-combustible compatible gases. (Natural Gas option available) |
| Housing | Die cast aluminum case and bezel, with acrylic cover, exterior finish is coated gray |
| Accuracy (Housing) | ± 2.5% of full scale |
| Pressure Limits | -70 to 100 KPa |
| Temperature Limits | -20 to 140°F (-6.67 to 60°C) |
| Size | 4" diameter dial face |
| Mounting Orientation | Diaphragm in vertical position |
| Connections | 1/8" NPT(F) high and low pressure taps, duplicated-one pair side and one pair back |
| Weight | 500 g |
| Standard Accessories | Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe threads to rubber tubing adapters and three flush mounting adapters with 3 screws |
