Special Features
- Accuracy ± 0.25 % FSD
- High resolution dial
- Stainless steel case & high precision measuring system
Application
- High-accuracy pressure measurement, testing of industrial type pressure gauges
- Precision measurement in laboratories

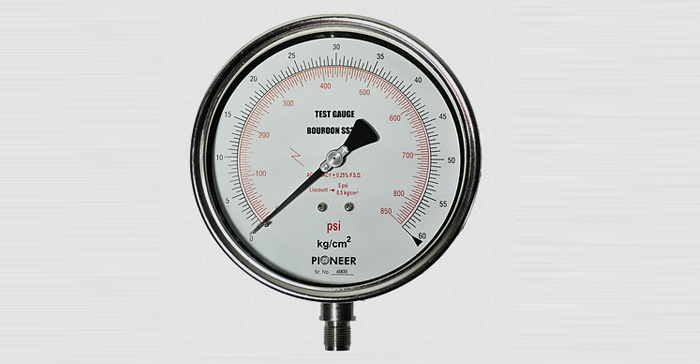

Test Gauge
TECHNICAL SPECIFICATIONS
Standard Dial Size : 100 mm, 150 mm, 200 mm, 250 mm
| Range | 0 - 1, 0 - 1.6, 0 - 2.5, 0 - 4, 0 - 6, 0 - 10, 0 - 16, 0 - 25, 0 - 40, 0 - 60, 0 - 100, 0 - 160, 0 - 250, 0 - 400, 0 - 600 kg / cm² |
|---|---|
| Units | kg / cm² / psi, bar |
| Dial Scale | Single scale , dual scale |
| Accuracy | ± 0.25 % FSD as per IS 3624 |
| Over Range | 130% F.S. |
| Protection | IP 65 / IP 67 |
| Mech. Shock 'G' Value | 15 G, 6 msec |
| Storage Temperature | -20 D.C. to 60 D.C. |
| Case Material | SS 304. Weather Proof, Dust Proof |
| Dial | Aluminum, Black Graduation on White Background |
| Windows | Shutterproof Glass, Toughened glass |
| System | SS 316 Bourdon with SS 316 Socket |
| Movement | SS 304 |
| Pointer | Knife Edge Micrometer Adjustable |
| Connetion | 3/8" BSP, 3/8" NPT, 1/2" BSP. 1/2" NPT, M20 x 1.5 |
| Mounting | Direct Mounting Bottom Entry |
| Option | Without, Glycerine Filled |
