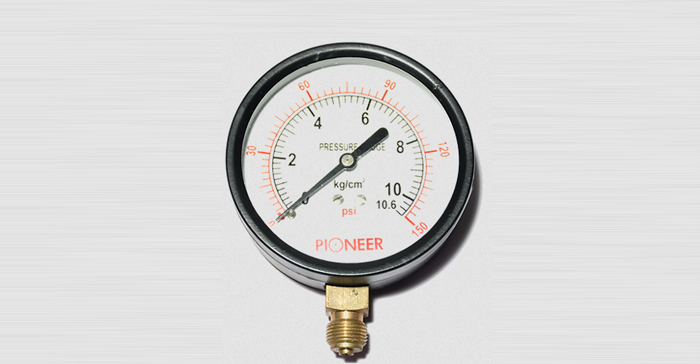

Special Features
- Economical version
- Dry
Application
- Hydraulic and pneumatic systems
- Machine and apparatus construction
Special Features
Application
TECHNICAL SPECIFICATIONS
Standard Dial Size : 40 mm, 50 mm, 63 mm, 100 mm
| Range | 0 - 1, 0 - 1.6, 0 - 2.5, 0 - 4, 0 - 6, 0 - 10, 0 - 16, 0 - 25, 0 - 40, 0 - 60, 0 - 100, 0 - 160, 0 - 250, 0 - 400, 0 - 600 kg / cm² |
|---|---|
| Units | kg / cm² / psi, bar |
| Dial Scale | Single scale , dual scale |
| Accuracy | ± 0.25 % FSD as per IS 3624 |
| Over Range | 130% F.S. |
| Protection | IP 54 |
| Mech. Shock 'G' Value | 15 G, 6 msec |
| Storage Temperature | -20 D.C. to 60 D.C. |
| Case Material | MS (Powder coated) |
| Dial | Aluminum, Black Graduation on White Background |
| Windows | Sheet Glass |
| System | brass |
| Movement | brass |
| Pointer | Black coloured, fixed |
| Connetion | 1/4” BSP , 3/8" BSP, 3/8" NPT, 1/2" BSP, 1/2" NPT, |
| Mounting | Direct Mounting Bottom Entry Surface Mounting Bottom Entry Flush Mounting Back Connection with Clamps Panel Mounting Back Entry |
| Option | Dry |
